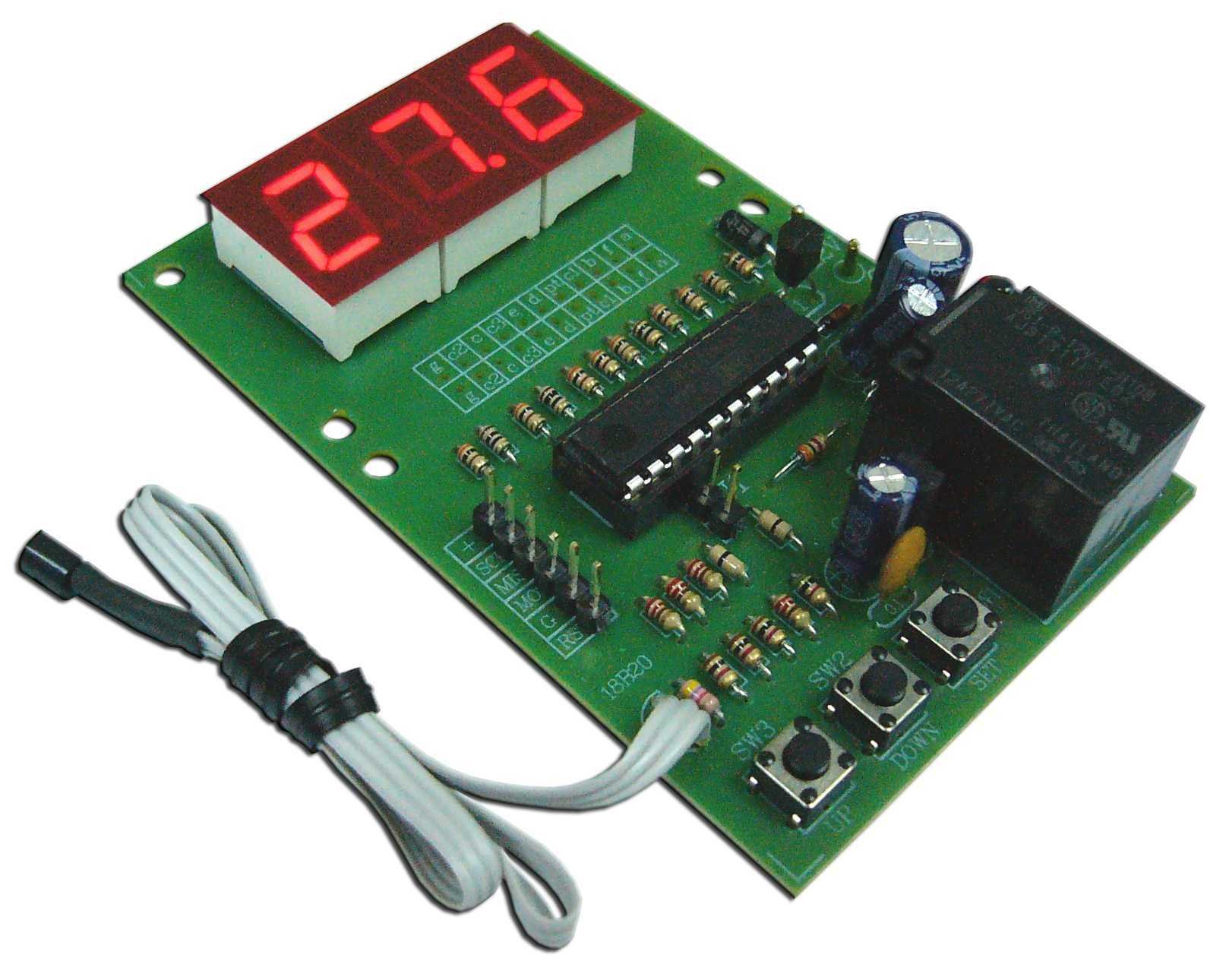

A programmed microprocessor and a precise digital temperature probe element are used by the FK945 to indicate and control temperature. A relay output controls heating and cooling loads when a user defined preset temperature threshold is exceeded. Applications for the FK945 include automatic fan control, over or under temperature alarm in broiler sheds and temperature control in hatching machines.

Technical Specification

  • Power Supply : 12VDC @ 70mA.
  • Indication and Set Point range : 0oC - 99oC
  • Operation : Output can be used to connect or disconnect heating or cooling equipment when the measured exceeds the bounds of a preset temperature
  • Maximum Relay Contact Loading : 1A. 220-240VAC
  • PCB Dimensions: 2.21"x 3.43" x 0.8" (56.1mm x 87.12mm x 22mm)

Download Manual Click Here
