MXA057
Attribute:
SEALED LEAD-ACID BATTERY CHARGER 0-2A.
Categories : MaxxTronic : MXA Series Functional Modules , Control and Power Supply ,

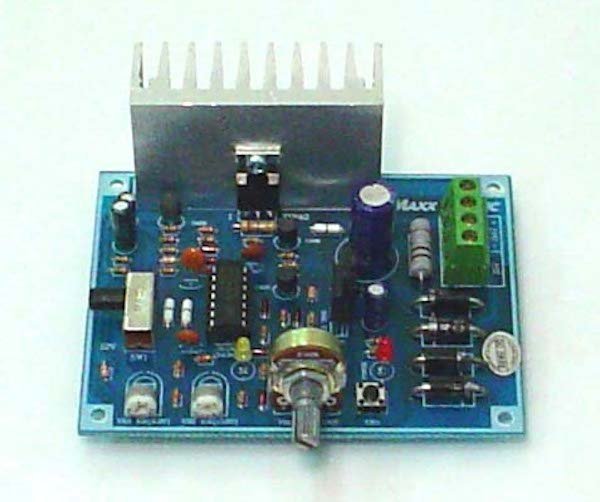

This prebuilt module is suitable for building into OEM equipment or as a stand-alone charger. It features, auto trickle charge (150mA) Output polarity protection, LED indication of power, charge and trickle charge.
Technical Specification
- Power Supply : 15V-18VDC @3Amp
- Charge Current : 150mA-2Amps (adjustable)
- Battery Types : Lead Acid (wet) or Sealed Lead Acid (SLA)
- Protection : Auto Reverse Polarity
- Indicator : LED Power ON
- Automatic trickle charging : 150mA.
- Power Supply : 15 VAC @ 3A. or 18 VDC @ 3A.
- Module Dimensions : 2.95" x 3.82" (75mm x 97mm)
- Recommended Housing : FB04
