MXA055

Attribute:

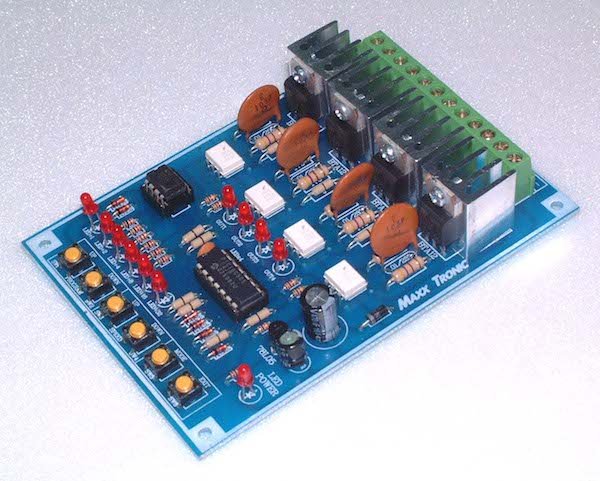

RUNNING LIGHT 4 CH. 4,000W. 32 PROGRAM (10 PROGRAMMABLE)

  • Power supply : 12VDC./max. 60mA.
  • 4 triac output : max. 12A. each (1,000W at 220VAC or 500W at 110VAC)
  • 42 programs (fix by the factory to 32 programs and new edit by user to 10 programs).
  • Max. step for the new edit of programs : 16 steps per program.
  • Supply voltage for the lights : 24VAC to 240VAC.
  • Can be select the operation to the running light or ON/OFF switch.
  • Running speed (without modifications) : adjustable to 256 steps.
  • LED indication for power ON/OFF, running light pattern and number of program.
  • Memory back-up with IC memory, protected the running light and speed of program.
  • PCB dimensions : 4.47 x 3.18 inch.

Download manual click here
