MB108

Attribute:

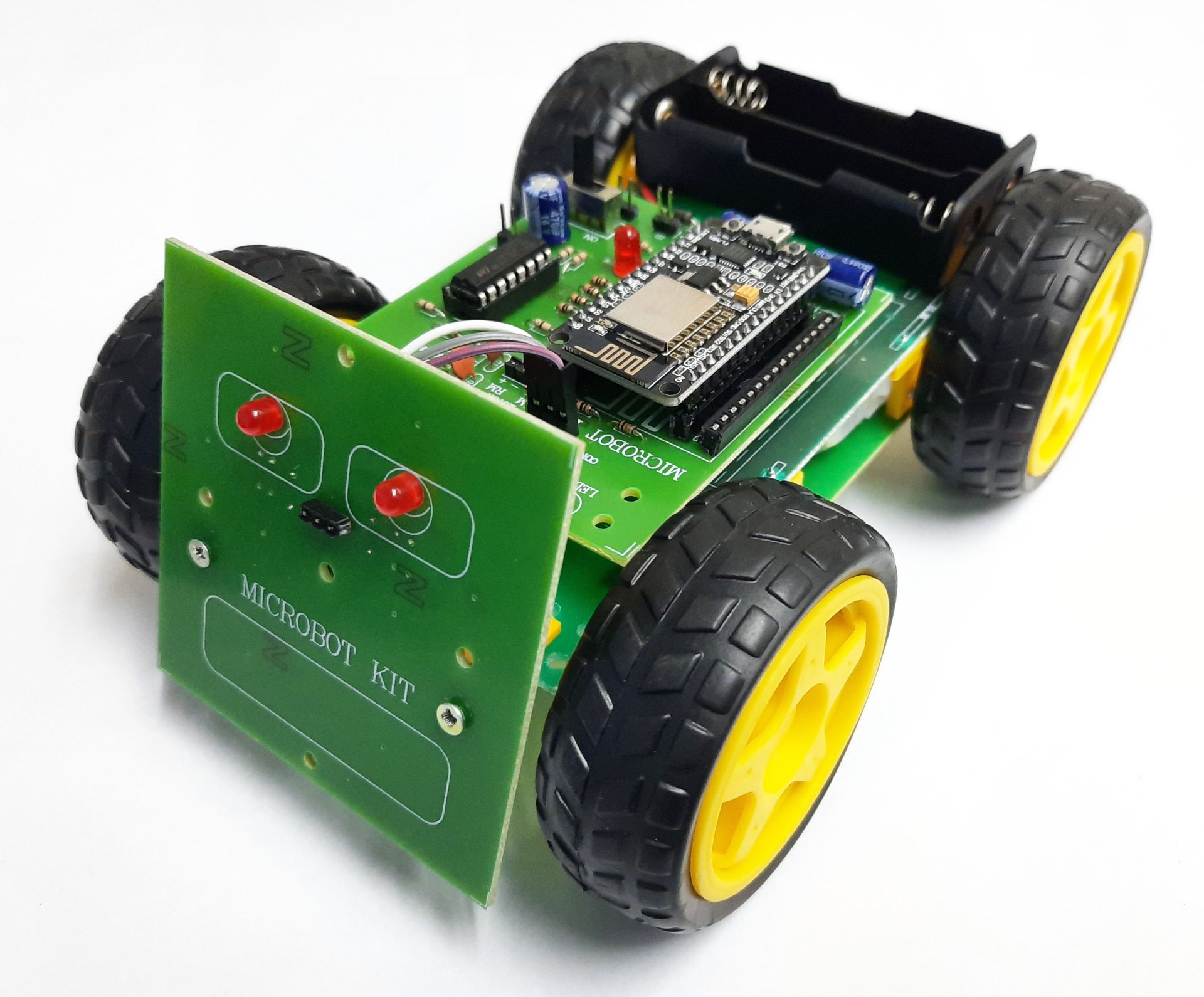

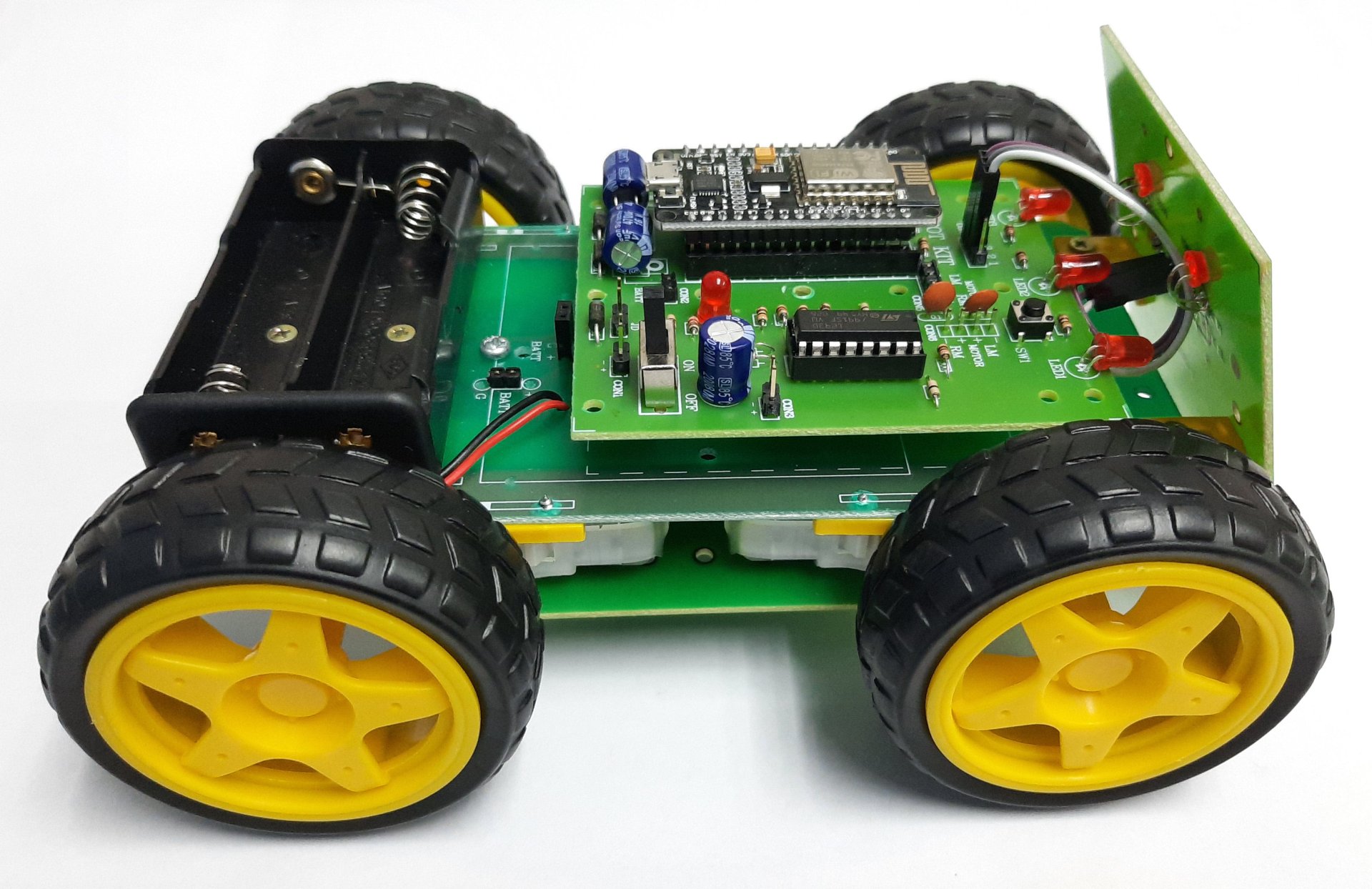

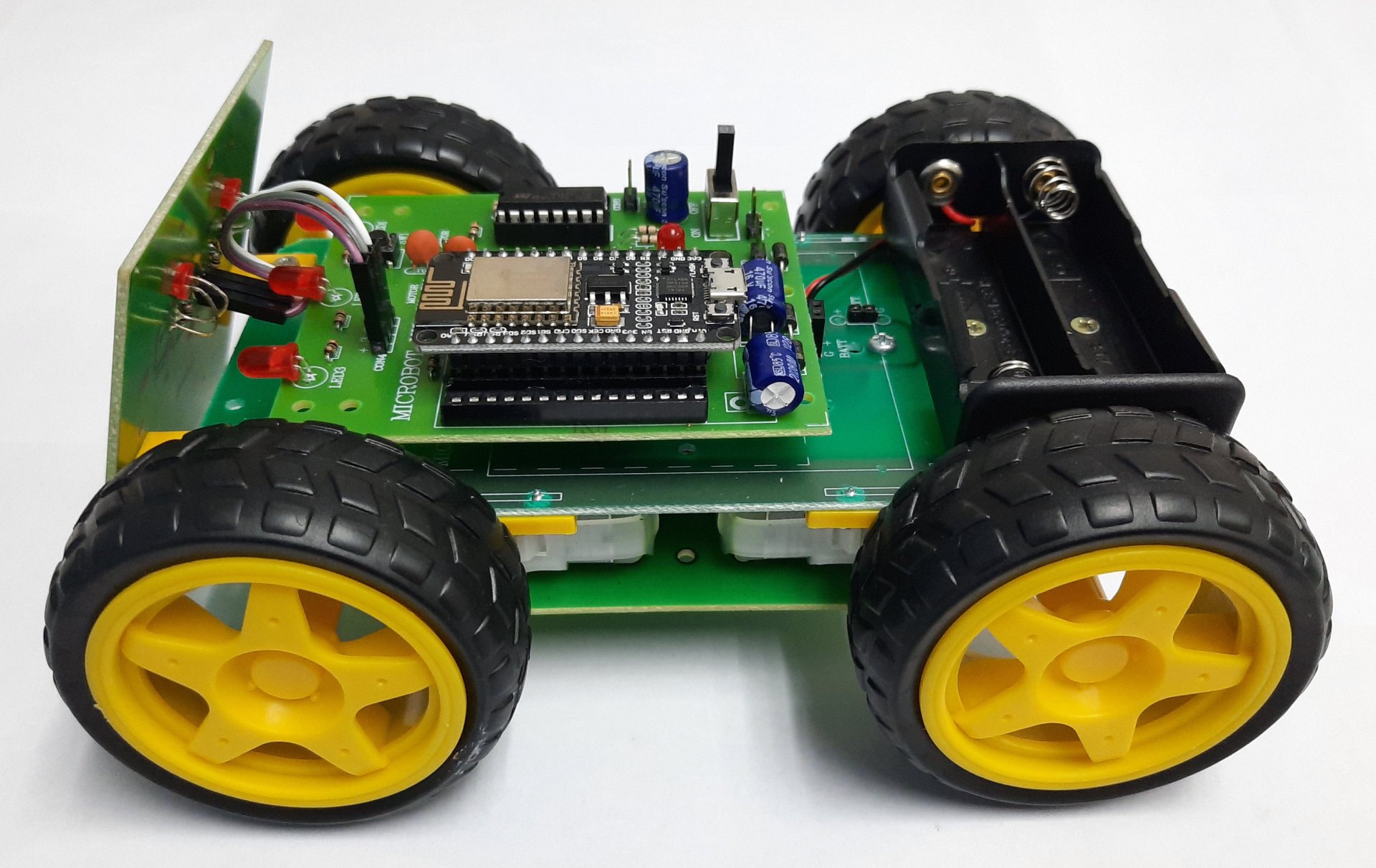

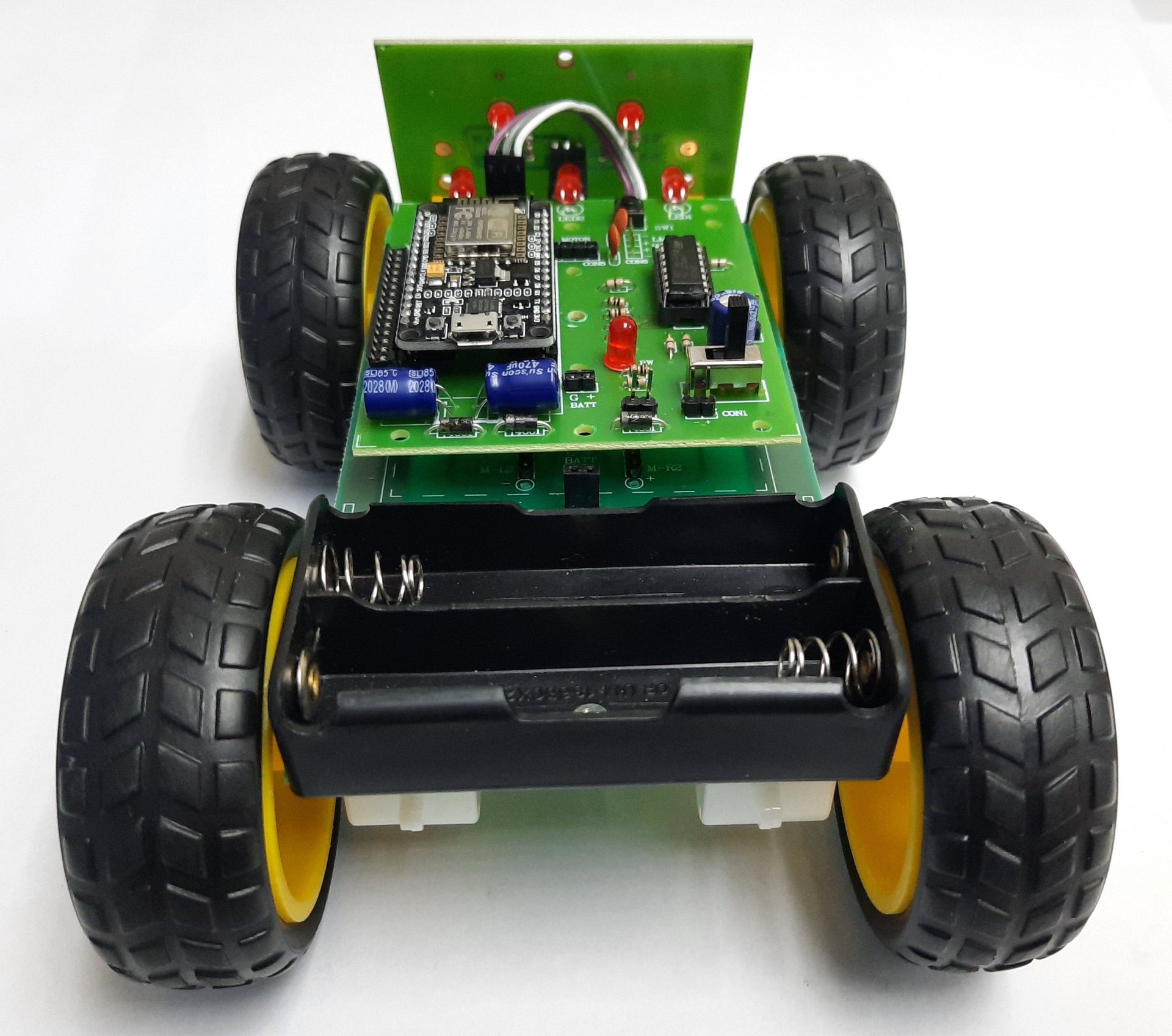

4WD MICROBOT CONTROLLED BY MOBILE PHONE (WiFi)

Share

Share

    This set of robot that uses 4 motors to control the movement. Makes forward-backward motion and turning left and right more flexible, and more fun to play than the robot that uses 2 motors. The robot controller uses a NodeMCU 1.0 board. Inside the board is a ESP8266 module, which has a 32-bit microcontroller IC, 4MB of flash memory and a WiFi module as well. Made it possible to send and receive data or command control of various devices such as the operation of robot control, switch on and off of tubes, and control watering of plants, etc. In addition, the NodeMCU 1.0 board also has a CP2102 IC for converting USB signals to UART, for use in connection with a computer for loading the driver we wrote. Users can write control programs through Arduino IDE or LUA programming with the aforementioned features. Therefore, it can be developed to order work through the Internet. Or as we can call it the Internet of Things (IoT).
    Besides that, users have learned how to write driver programs. Also learn about mechanics such as the operation of gear motors, learn how to create applications to control robots, and learn the operation of electronic circuits.

Technical data

  • Power supply : 7.4-8.4VDC. (2 pieces of 18650 batteries).
  • Electric current consumption : 800mA.
  • Applications can be used on mobile phone to control robot via Wi-Fi.

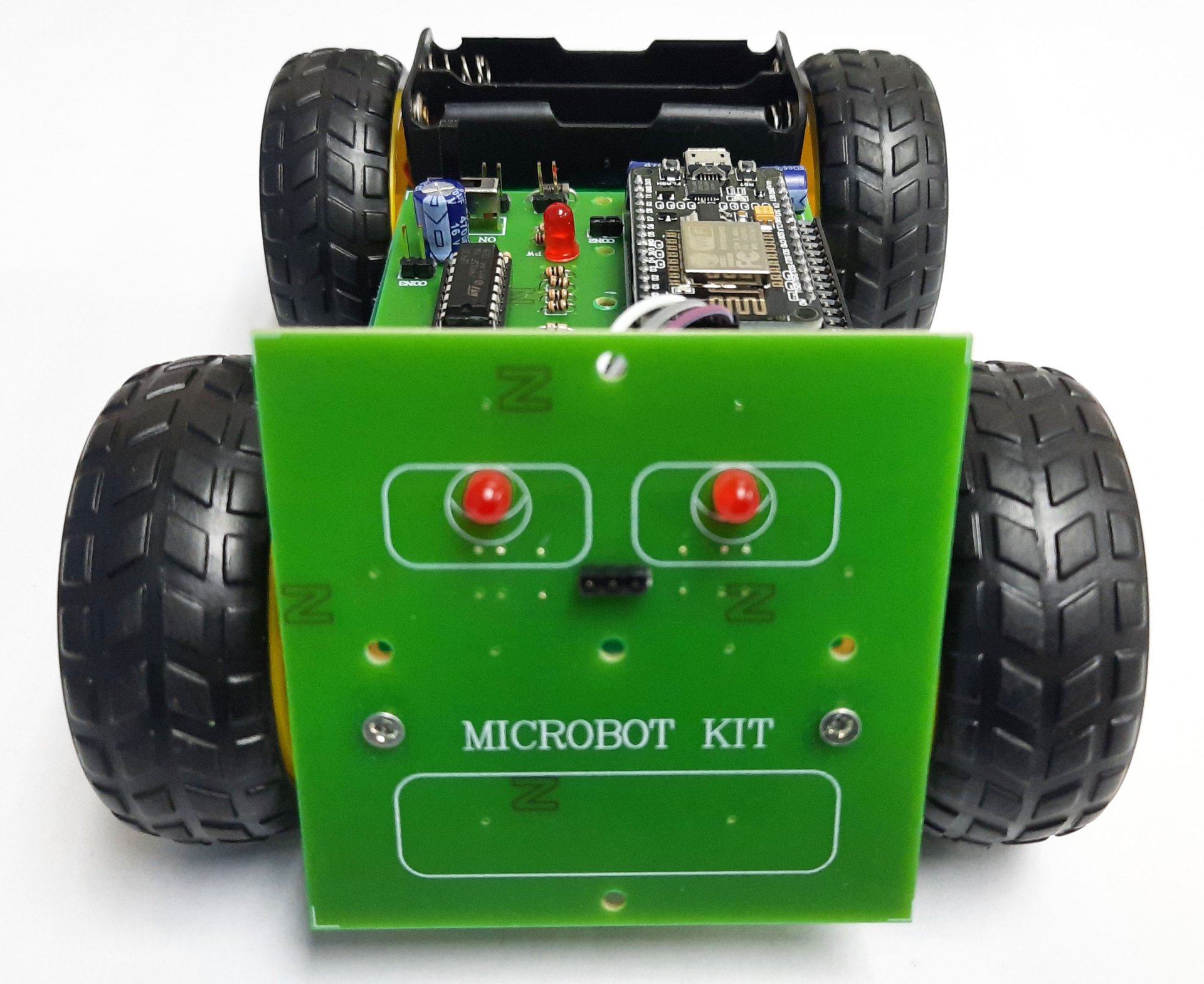

  • There are 3 LEDs for display.
  • Applications made available on ANDROID mobile phones up to version 10.
  • IC board dimension : 2.76 in x 3.23 in.
  • Body dimension (WxLxH) : 130 x 190 x 90 mm.
  • Weight (batteries not included) : 390g.
  • Use a 4WD drive system.

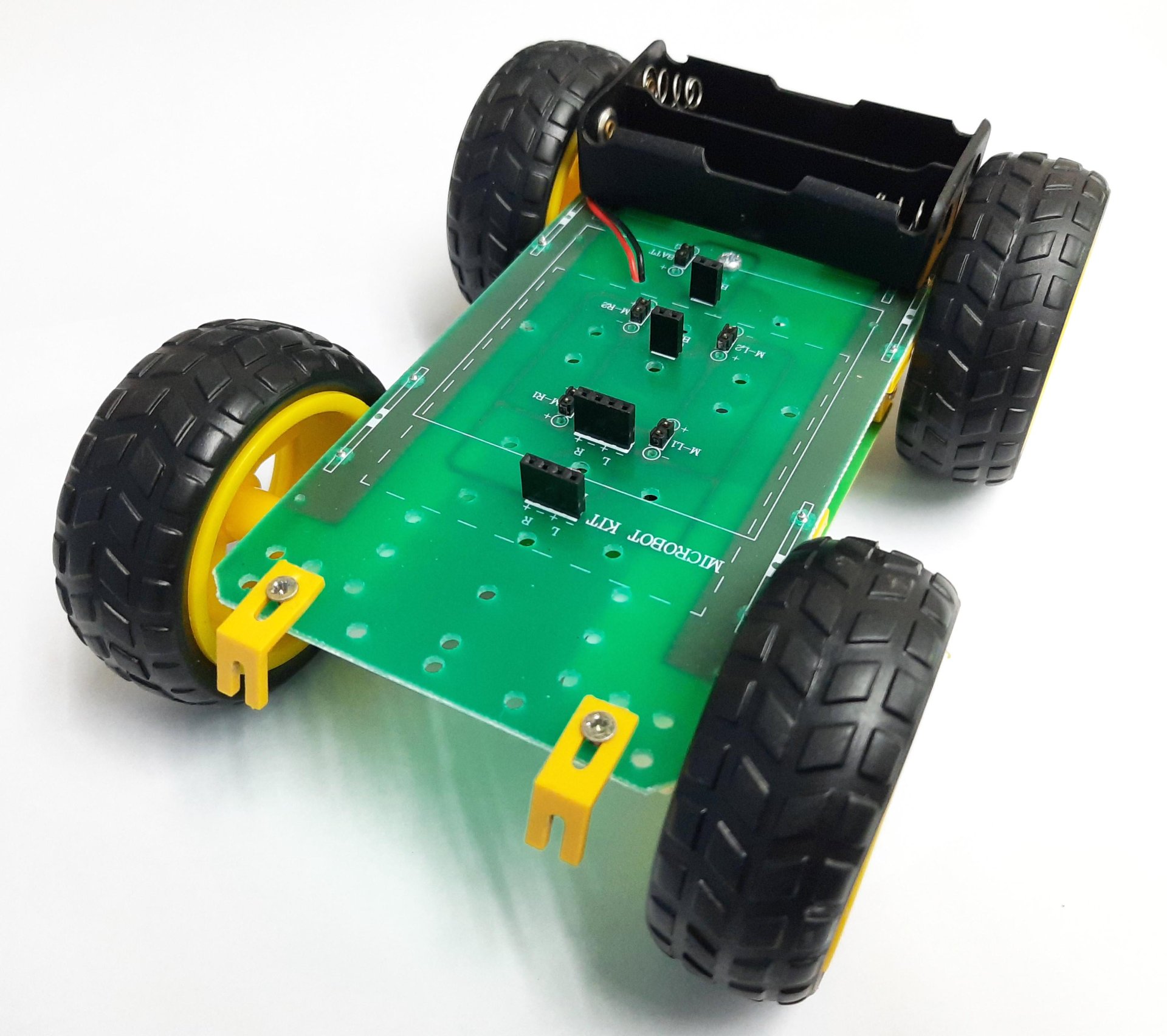

  • The robot body uses Epoxy PCB.
  • Use all 4 motor gearboxs.
  • Features of motor gearboxs used :
    1.Voltage size: 3-6VDC, 120mA@6VDC (without load).
    2.Maximum speed of motor gearbox (without load) : 120-240rpm/min.
    3.Gear Ratio : 1:48.

Download Manual Click Here
