FK118

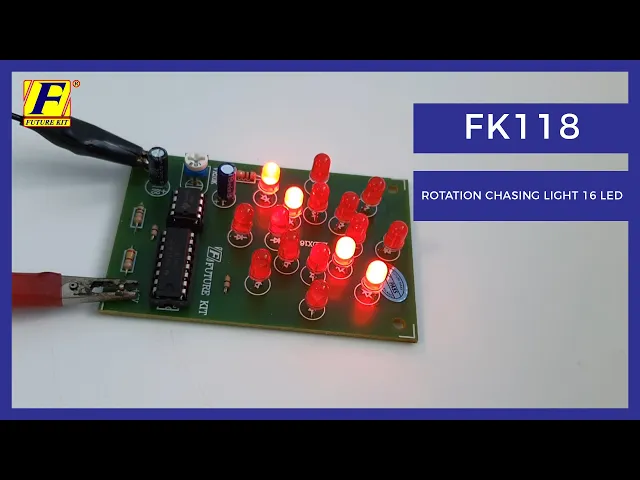

This rotation chasing light circuit is best for light decoration.The LEDs of the FK118 chaser are arranged in two concentric circles so when each set of four LEDs are in a row light up in sequence, they appear to rotate like the vanes of a windmill.The "rotating" speed can be adjusted, through the on-board potentiometer. Applications include festive decorations, "eye catchers" at point-of-sale in retail stores and fancy dress costume effects.

Technical Specification

• Power Supply : 9-12V @ 18-30mA max.
• PCB Size : 3.09" x 2.08" x 0.6" (incl. components : 78.5mm x 52 0.8mm x 15mm)
• Recommended Housing : FB04
