MB101

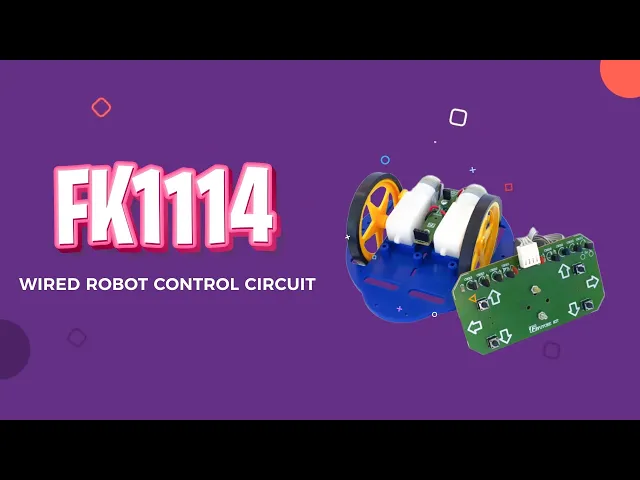

This circuit is a simple control circuit that is suitable for beginners learning about robots. Both in electronic circuits and the mechanics.

Technical data

• Power supply : 2 rechargeable AA batteries (not included).
• Electric current consumption : 155mA.
• PCB dimension : 3.94 in x 2.08 in. (Control circuit)
• Body dimension (WxLxH) : 120 x 130 x 70 mm.
• Weight (batteries not included) : 175g.
• Use a 2WD drive system.
• The robot body uses ABS plastic.
• Use all 2 gear motors.
• Features of geared motors used :
• 1.Voltage size: 3VDC, 100mA (without load).
• 2.Maximum speed of gear motor (without load) : 120rpm/min.
• 3.Gear Ratio : 1:48.
